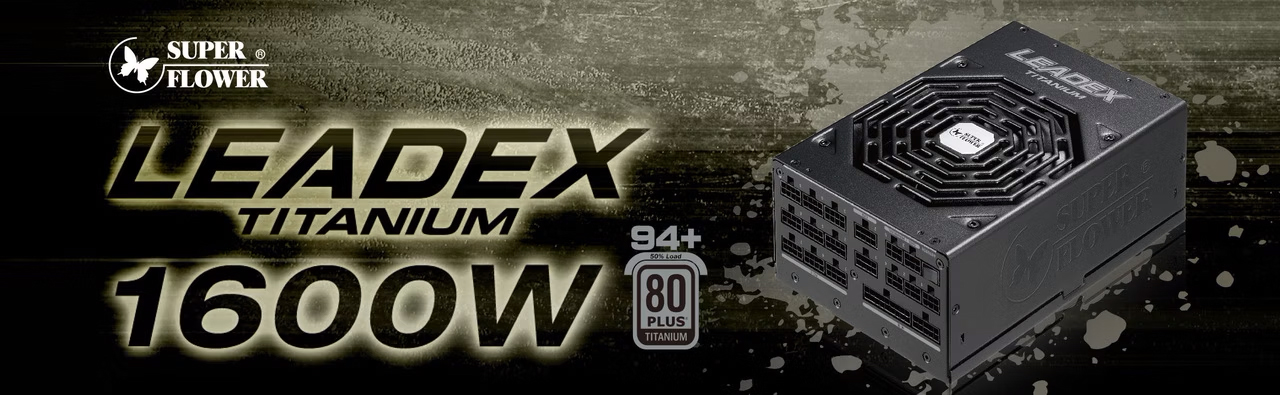

Super Flower Leadex Titanium 1600W 80+ Titanium 10 Years Warranty ECO Fanless & Silent Mode Full Modular Power Supply
![](https://www.centralcomputer.com/media/wysiwyg/01_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/01_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/02_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/02_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/03_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/03_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/04_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/04_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/05_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/05_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/06_1.jpg)
![](https://www.centralcomputer.com/media/wysiwyg/06_1.jpg)
General Information
LEADEX Titanium series PSU are 80+ Titanium certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
Features
- 100% Full Modular Cabling Design For Easy Cable Management

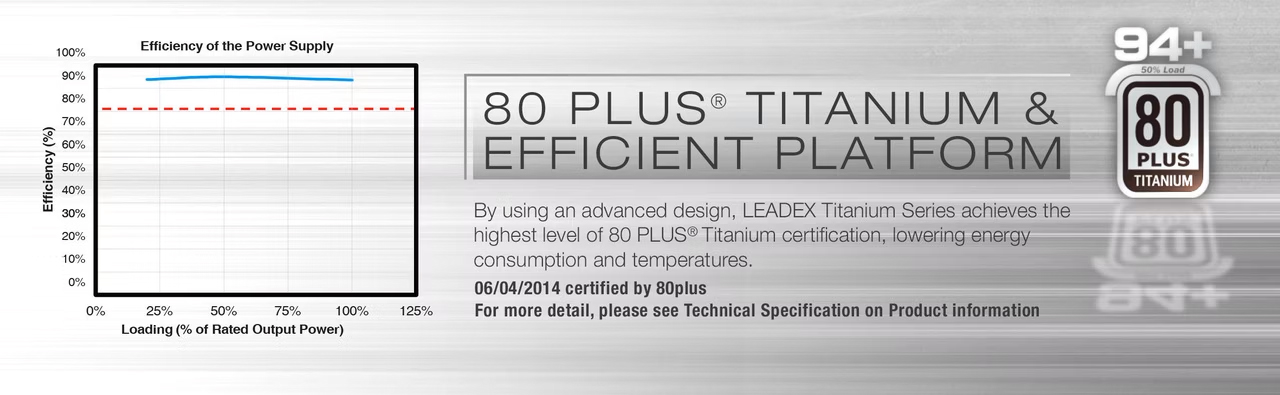

- 80 PLUS® Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
- Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
- Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
- Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
- More than 2,000 times On/Off test
- Unleaded Green Materials with RoHS/WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- Exclusive Patents
- This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

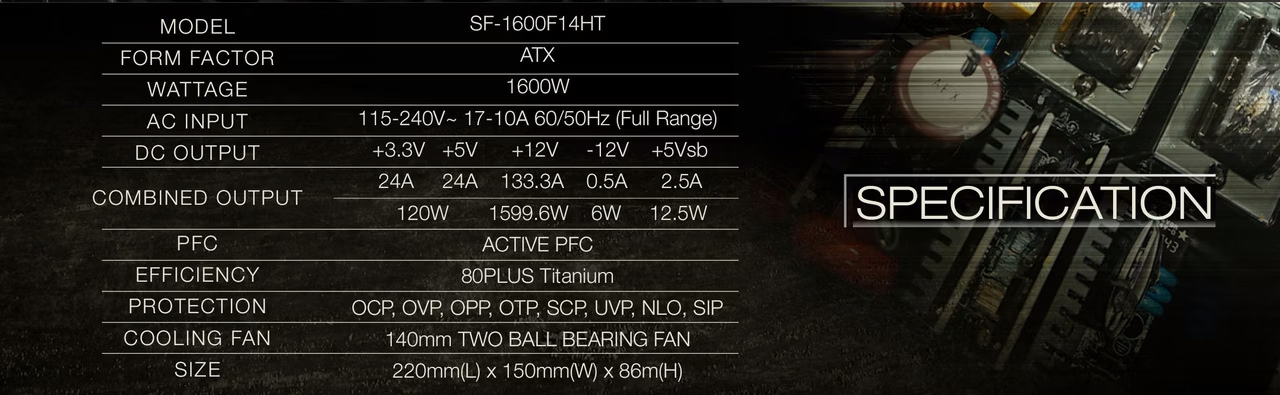

Specifications
Model No. | SF-1600F14HT | |
Wattage | 1600W | |
80+ Efficiency | 10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium) | |
Intel Power Design Guide | V2.92 | |
AC Input / Frequency | 100-240V | 60 / 50Hz | |
Fan Size | 140mm Two-Ball Bearing Fan | |
Dimension | 220mm(L) x 150mm(W) x 86mm(H) | |
Protection | OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP | |
Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / RoHS / KCC / CQC | |
Temprature | Passed 50℃ Hot Testing | |
Cable Specifications | ||
20+4Pin | Detachable Cables | One cable (600mm) |
8 (4+4) Pin CPU | Two cables (750mm) | |
PCI-E 6+2Pin | Four cables (750mm) | |
SLI (2 x PCI 6+2Pin) | Five cables (750+150mm) | |
4SATA | Three cables (550+100+100+1000mm) | |
2SATA+2Molex | One cable (550+100+100+100mm) | |
3Molex | One cable (550+100+100mm) | |
Molex to FDD Adapter | Two cables (100mm) |
