ASRock X670E PG Lightning ATX Motherboard Ryzen 7000 AMD Socket AM5 DDR5 7.1HD Audio USB 3.2 Gen 2 2.5Gb Ethernet

Specifications

CPU

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

Chipset

AMD X670

Memory

• Dual Channel DDR5 Memory Technology

• 4 x DDR5 DIMM Slots

• Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)

• Max. capacity of system memory: 128GB

• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• Nahimic Audio

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

• Dragon RTL8125BG

• Supports Phantom Gaming LAN Software

  • Smart Auto Adjust Bandwidth Control

  • Visual User Friendly UI

  • Visual Network Usage Statistics

  • Optimized Default Setting for Game, Browser, and Streaming Modes

  • User Customized Priority Control

Slots

CPU:

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

Chipset:

• 1 x PCIe 4.0 x1 Slot (PCIE2)*

• 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

• Supports AMD CrossFire™

• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks

Storage

CPU:

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

• 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*

• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

• 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Connector

• 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header*

• 3 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin)***

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector

• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna Ports

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)

• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

• 6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• 1 x BIOS Flashback Button

• HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

• ASRock Motherboard Utility (A-Tuning)

• ASRock Dragon 2.5G LAN Software

• ASRock Polychrome SYNC*

UEFI

• ASRock Full HD UEFI

• ASRock Auto Driver Installer

• ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

• 1 x User Manual

• 2 x SATA Data Cables

• 4 x Screws for M.2 Sockets

• 1 x Standoff for M.2 Socket

Form Factor

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

• 8 Layer PCB

OS

• Microsoft^® Windows^® 10 64-bit / 11 64-bit

Certifications

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

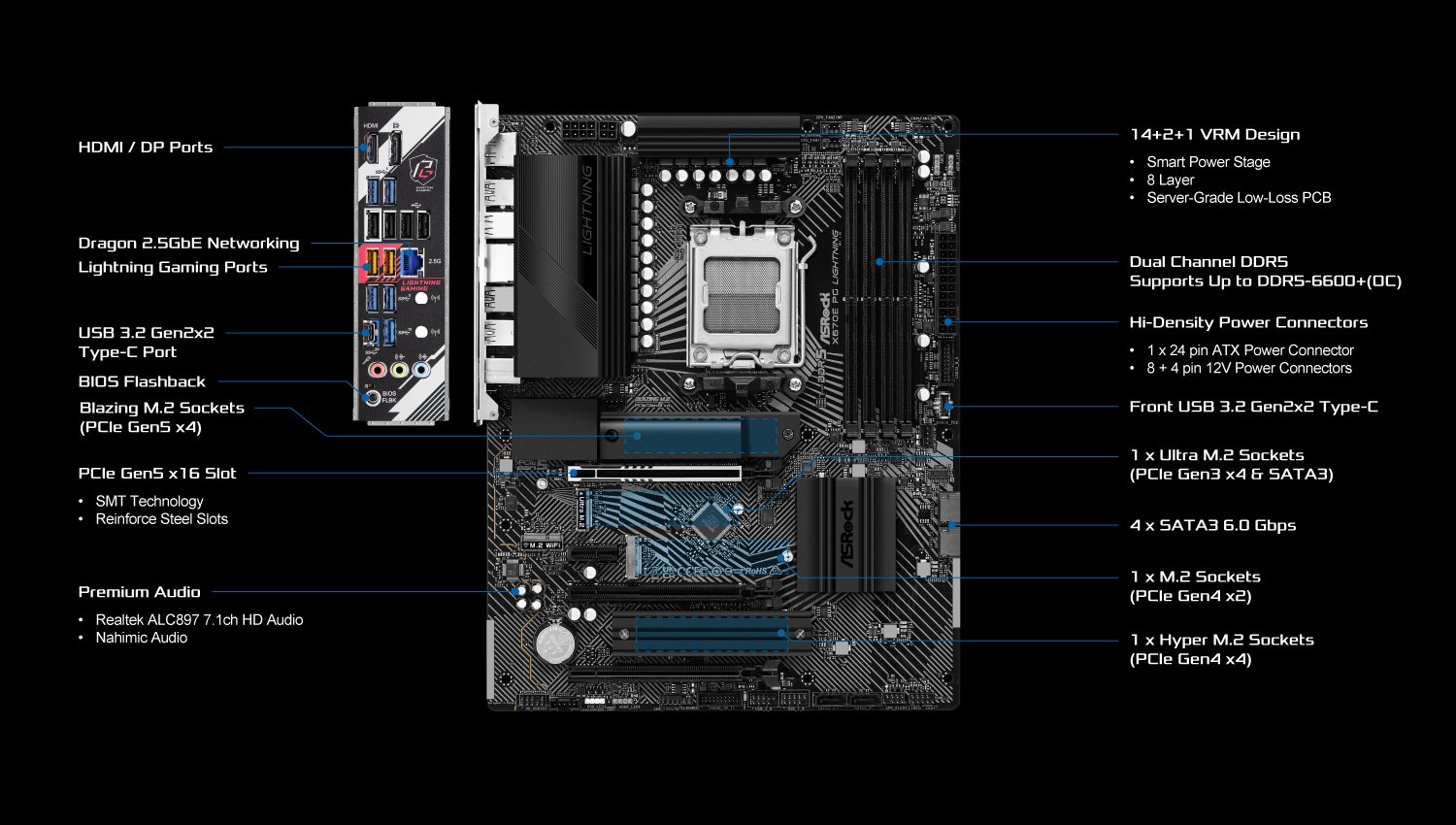

Unique Features

Superb Productivity

• PCIe Gen5 (Graphics, M.2)

• Dual Channel DDR5

Rock-Solid Durability

• Server-Grade Low-Loss PCB

• 14+2+1 Power Phase, 70A SPS for VCore+SOC

• Pre-Installed I/O Shield

Ultrafast Connectivity

• 2.5G LAN

• ASRock Lightning Gaming Ports

EZ Update

• BIOS Flashback Button

• ASRock Auto Driver Installer

EZ Troubleshooter

ASRock Post Status Checker
